Product Details
TECHNICAL PARAMETERS：
Model:
Lift control LC2
MEASUREMENT:
Dimensions:

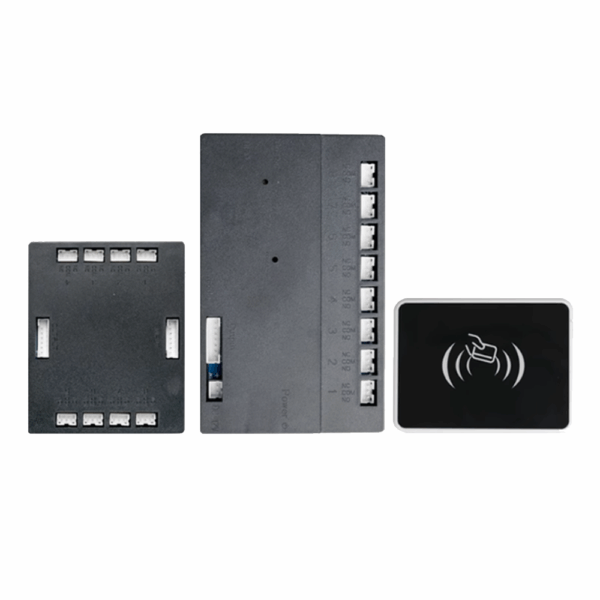

Motherboard 66 x 106 x 18.5mm / Cascade board 60 x 80 x 17mm / Swipe Antenna 45 x 50 x 8mm
MAIN PARAMETERS
Support system：
Android 4.3/IOS7.0 above
Control method：
App、IC card
Power supply mode：
DC power supply
Voltage rang：
9~16V
Standby current：
18 mA (without administrator)
Working current：
8 layers less than 120mA; 64 layers less than 1A (after configuration)
Operating temperature range：
-20~70 degrees Celsius
Supported Card Type：
MIFAREM1S50card
Number of IC cards：
1000 pieces
Maximum number of floors supported：
64 floors
Local storage operation log：
2000
Housing
Warranty period:
2 years
Country of origin:
China
